Door Hardware
A detailed overview of the hardware we use including the brand and applications.
Fritsjurgens Pivot Systems
Pivot Hinge Systems for any type of door
FritsJurgens concealed pivot hinge systems are applicable for any type of interior or exterior door, both for pivot doors; without and with frame. The pivot hinges are also suitable for a wide range of material, such as glass doors, steel doors, steel doors with glass, wood, solid and antique doors.
FritsJurgens has revolutionised the pivot door by fully mortising the pivot hinge in the top and bottom of the door. This eliminates the need for complex floor installations with small floor and ceiling plates being the only visible signs of the hinges.
FritsJurgens pivot hinges can be applied both in commercial and residential environments.
FRITSJURGENS FULLY CONCEALED PIVOTING DOOR HINGE FOR DOORS
Absolute control over the movement of the pivot door. Now possible with the System M pivot hinge of FritsJurgens:
• 500 Kg bearing capacity
• Hold closed positions at 0˚
• Hold open positions at 90˚and -90˚
• Self-closing from -125˚ to + 125˚
• Fully adjustable whilst in the door
• Adjustable closing damping (soft close)
• Hydraulic backcheck (wall protection)
• Patented, made 100% in The Netherlands
• Fully installed in the door and not the floor
• Top & bottom plates available in SS & black
• Winner of the “Red Dot Design” award 2019
• Unlimited door height and upto 5 meters wide
• No cutting into concrete slabs or timber floors
• Tested & guaranteed to minimum of 1,000,000 cycles
• No unsightly large floor plate to visually interrupt the look & feel of the floor
For more information, visit:
Finishes Available:
Geze Pivot Systems
(Included in Pivot Door Hardware Kit)
TS 500 NV
Application Areas:
• Fire and smoke protection doors
• Right and left single- and double-action doors
• Single- and double-action doors up to 1100 mm leaf width and 150 kg weight
• Floor mounting concealed
Floor Spring for single leaf single and double-action doors of up to 1100mm width with adjustable closing force EN 1-4 and with optional hold-open function.
Closing force with variable adjustment from EN 1-4
Can be used for right and left hand doors without conversion
Closing speed can be individually adjusted
Hydraulic latching action which accelerates the door shortly before the closed position
Integrated back check, slows down doors that are thrown open forcefully
All functions can be adjusted from above and in the installed state
TS 550 NV
Application Areas:
• Right and left single- and double-action doors
• Single- and double-action doors up to 1400 mm leaf width and 300 kg weight
• Frequently used and heavy doors
• Floor mounting concealed
Floor Spring for single leaf single and double-action doors of up to 1400mm leaf width with adjustable closing force EN 3-6 with optional hold-open function.
Closing force with variable adjustment from EN 3-6
Can be used for right and left hand doors without conversion
Closing speed can be individually adjusted
Hydraulic latching action which accelerates the door shortly before the closed position
Integrated back check, slows down doors that are thrown open forcefully
All functions can be adjusted from above and in the installed state
For more information, visit:
Finishes Available:
Hinges
(Included in Hinged Door Hardware Kit)

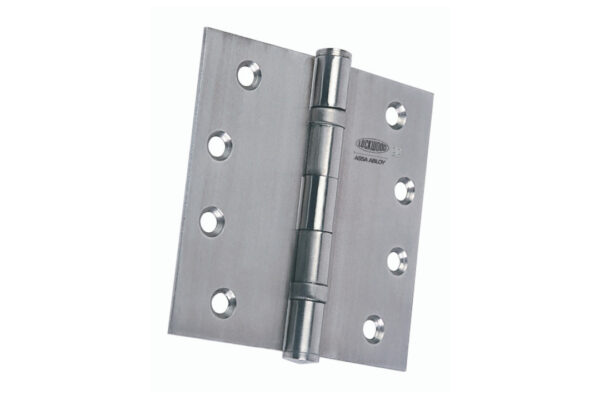

Lockwood 100 Series Architectural Hinges
The 100 Series Architectural Hinges are designed to provide an effective solution to hanging doors where there is a need for high grade architectural quality hinges.
Suitable for both interior and exterior applications.
Fire Rating
Stainless steel and steel hinges have been successfully tested up to 4 hours on fire door assemblies in accordance with Australian Standards AS1905 Part 1 – 1997 Fire Resistant Doorsets.
Finishes Available:
Fast Fix Aluminium Hinge
The Lockwood AH130 is a heavy duty fast fix hinge with face fix flanges to suit aluminium commercial door applications. Heavy duty, bi-directional face fix locator flanges allows for faster installation.
Technical Specification
• Hinge: 6063-T6 alloy
• Hinge Pin: 6mm 304 grade Stainless Steel
• Nylon bushes
• Squareline heavy duty knuckles
• Interference pressed fit aluminium end caps
Finishes Available:

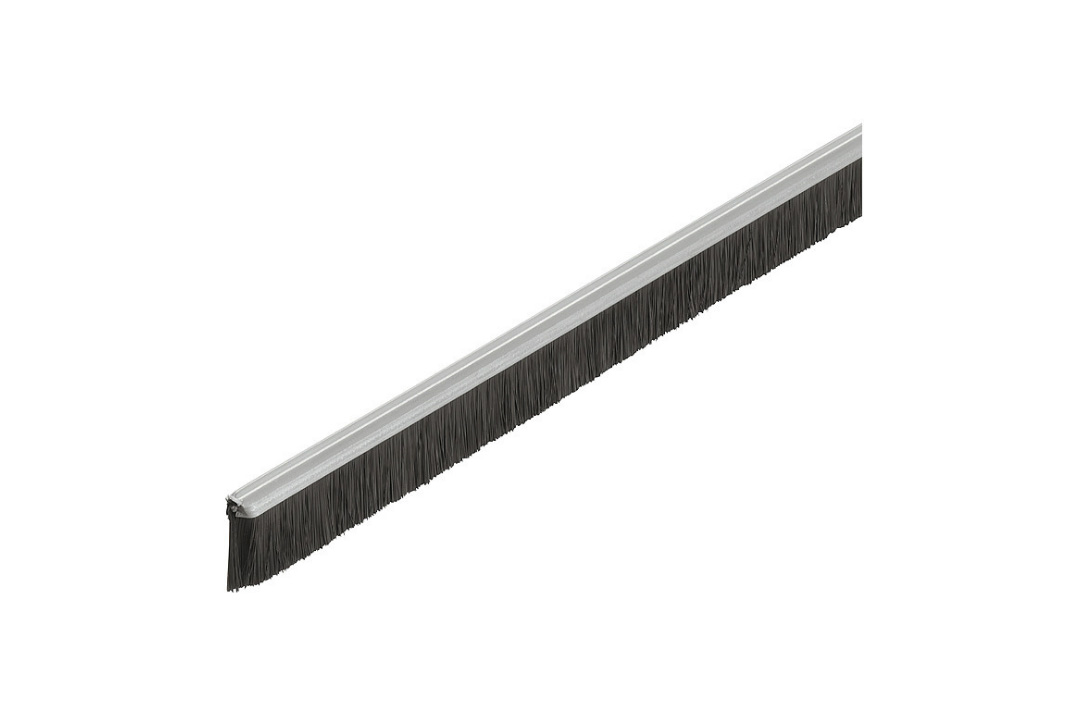

Brush Seals
(Included in Pivot Door Hardware Kit & Hinged Door Hardware Kit)
• Ambient (Cold) Smoke. Temperatures upto 70’C
• Energy, Droughts & Dust
• Medium Temperature Smoke (NCC Spec. C3.4) Temperatures of 200’C for 30 minutes (smoke doors).
• Light
• Insects & Vermin
• Up to Bal – 29 – BushFire Attack Level in Accordance with As 3959
• Heavy Duty
A nylon brush strip seal without holder, that is fitted in a concealed manner into a machined groove in a door. Seal: Black fine, dense, UV stabilised nylon filaments secured in a galvanised steel spine.
AUSTYLE myLOCK Mortice Lock | High Security | Integrated Privacy/Entrance Lock | Roller
(Included in Pivot Door Hardware Kit and Hinged Door Hardware Kit)
304SS CASE, ROLLER, PRIVACY BOLT, DEAD BOLT | The iconic myLOCK integrates day-to-day quick snib locking with high security dead bolt locking | Use the privacy function for KEYLESS locking | Use the dead bolt for high security locking | Designed and engineered in Australia | Adjustable roller latch projection / tension | Suits left or right hand door openings | Heavy duty casing and internal components | Non-combustible internal components.
*Not Compatible with Electronic Strike
Finishes Available:
Lockwood Synergy 3572 Vestibule Mortice Locks
Suitable for heavy duty use in industrial and commercial buildings, institutions, clubs, schools, hospitals, hotels, and similar buildings.
3570 Series Cylinder Mortice Locks are made from quality materials to meet high durability and strength requirements.
These locks have various latching functions which can be operated by key or handle outside and by turnknob, key or handle inside.
For ease of selection specify primary lock (3572SC). This lock can then be easily adapted to suit the function required.
These locks have various latching functions which can be operated by key or by handle inside.
*Compatible with Electronic Strike
Finishes Available:
Electronic Strike
An Electric Strike is an access control device used to lock and release doors. Electric Strikes are installed in or on the door frame and work in conjunction with mechanical door locks, on the principle of electronically controlling the rotation of the keeper. This allows doors to be opened without manual retraction of the mechanical door lock. Electric Strikes generally come in two basic field-selectable configurations:
Power To Release (PTR)
In this configuration, applying power to the strike will cause it to unlock. The strike will remain locked in a power failure. However most access control systems are provided with backup batteries.
Power To Lock (PTL)
In this configuration, applying power to the strike will cause it to lock. If there is a power failure or fire alarm condition the door will open merely by being pushed/pulled.
MONITORING FEATURES
Please refer to the particular Electric Strike part number in the brochure to obtain the features listed below.
- LOCK STATUS SENSOR (LSS)
The monitoring of the lock status (locked or unlocked). This is achieved by monitoring the movement of the internal locking mechanism. - DOOR STATUS SENSOR (DSS)
The monitoring of the mechanical lock status with a switch assembly monitoring the tongue of the mechanical lock in the keeper of the Electric Strike. The switch provides NO/NC changeover dry contacts for remote monitoring. - ANTI-TAMPER-MONITORING (ATM)
The ultimate monitoring of the device itself installed within the door frame.A switching assembly monitors the strike being removed from the door frame.
Extended Striker Plate
(Included in Pivot Door Hardware Kit and Hinged Door Hardware Kit)
Used to protect latches from marking the doors when there is an extended jamb width.
Finishes Available:
